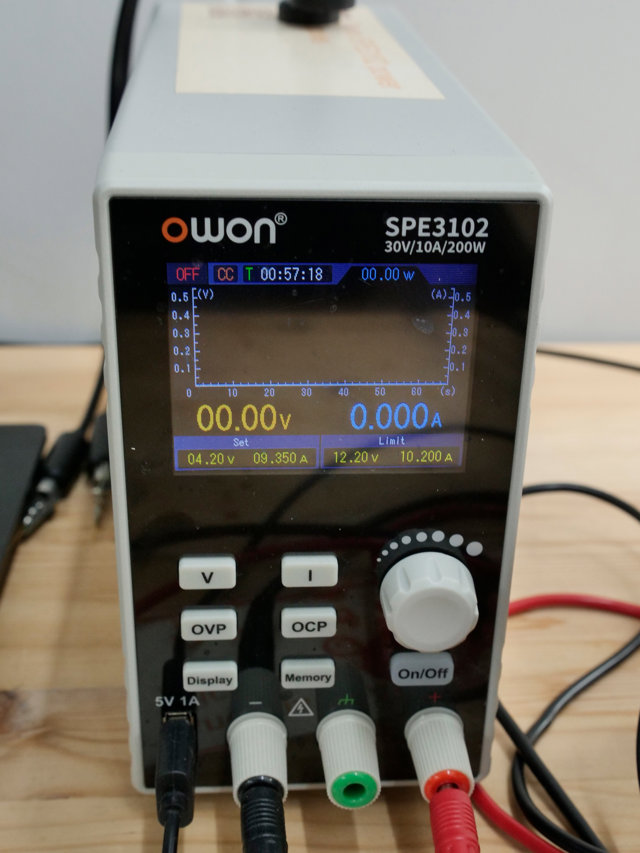

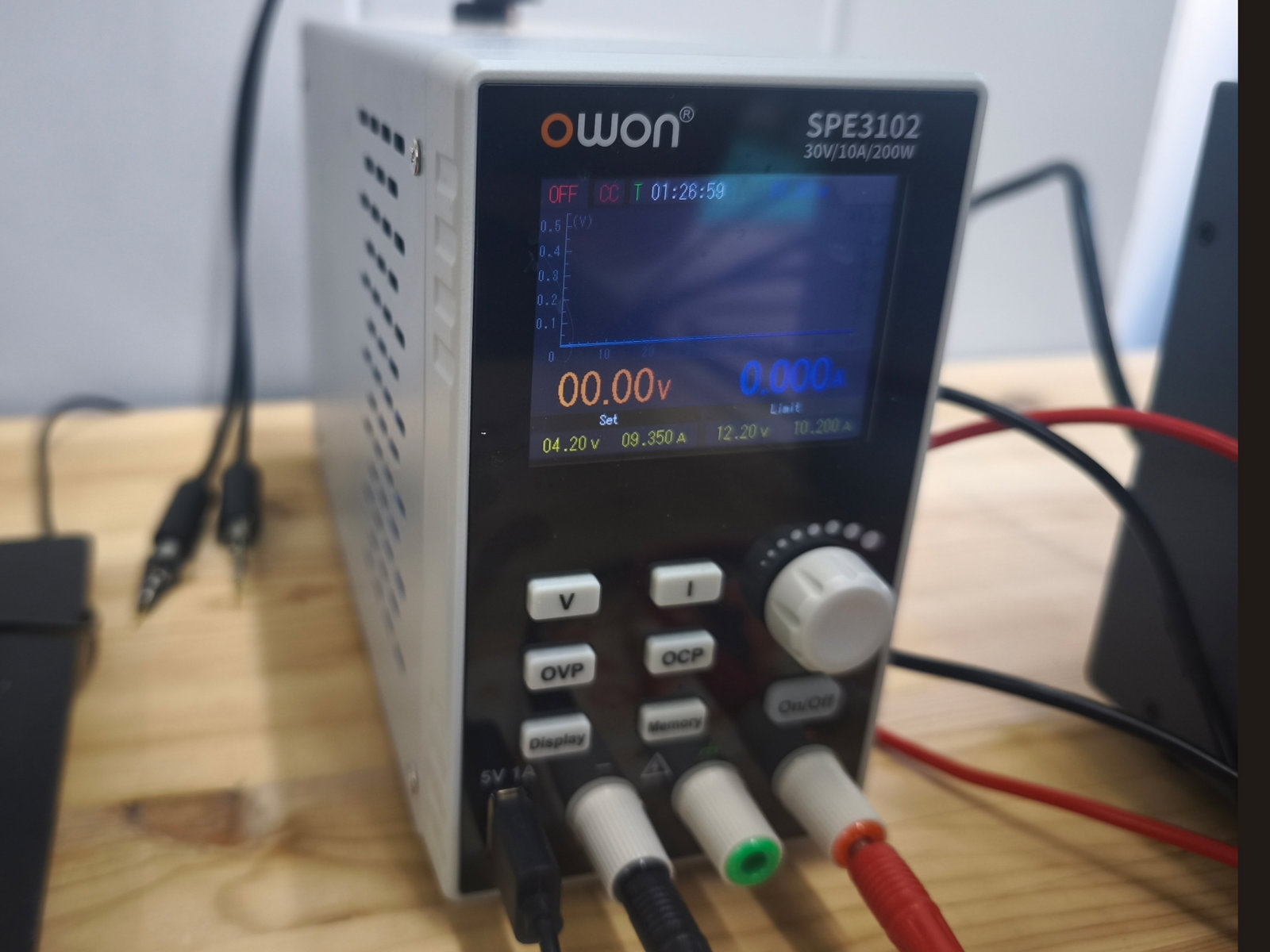

OWON SPE3102 Programmable Power Supply

The main power supply on the electronics bench. Voltage and current limit are set to a millivolt and a milliamp, and when a fresh circuit has a short, the supply sits at the limit instead of letting out smoke. 10 A is enough for motors, LED strips and heaters, not just microcontroller boards. The graph on the screen shows how much a device draws over time.

How to use

1. Switch the supply on with the output off. Set the voltage with the V button and the knob, the current limit with the I button. Set the limit as low as the circuit allows: that is what saves boards.
2. Optionally set OVP and OCP a little above the working values as a second safety net.
3. Connect the leads, check polarity: red is plus, black is minus, the green terminal is earth, not minus. Press On/Off to enable the output.
4. The CC indicator means the circuit draws more than you allowed and the supply is holding the current.
5. When done, switch the output off first, then remove the leads, then switch the supply off.

Take care

• 10 A through thin leads or a breadboard heats them to a fire. For high currents take proper leads from the shelf.
• Do not connect the output to a live circuit or in parallel with another source.
• Do not charge lithium cells from it; that needs a charging circuit.
